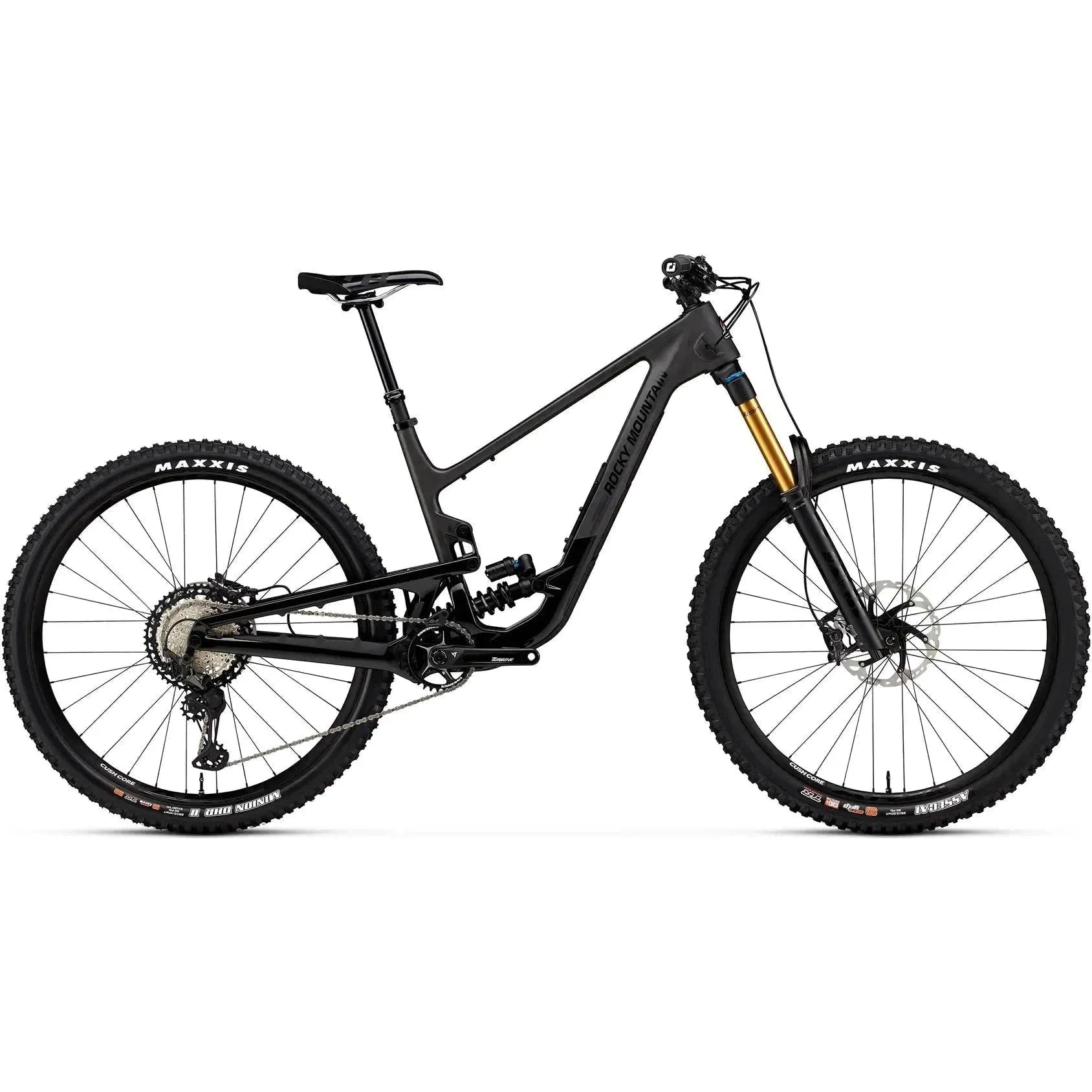

The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry |160mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
| Fork | Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Front Travel | 170 |
| Shock | Fox DHX2 Factory | Steel Spring | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Coil Spring SM - MD - LG - XL = 400 - 450 - 500 - 550 |
| Rear Travel | 160 |
| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | /- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm |
| Handlebar | Race Face Turbine | 780mm Width | 35mm Rise | 8° Backsweep | 5° Upsweep | 40mm Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Shimano XT Trail 4 Piston | IceTec Metal Pads |
| Shifters | Shimano XT |
| Rear Derailleur | Shimano XT |
| Cranks & Chainring | Race Face Turbine Cinch | 32T | 30mm Spindle | SM = 165mm | MD - XL = 170mm |
| Bottom Bracket | Race Face BSA 73 30mm |
| Cassette | Shimano XT 10-51T |
| Chain | Shimano M8100 |
| Front Hub | Rocky Mountain SL Sealed Boost 15mm |
| Rear Hub | DT Swiss 350 Boost 148mm | 36T Star-Ratchet |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Rims | Race Face AR 30 | 32H / Tubeless Ready - Tape / Valves Incl |
| Tires | F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready // Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection |
| Seatpost | Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm |
| Saddle | WTB Volt Race 142 |
| Weight | 34.782|15.81 KGS |
